Reverse engineering
Rebuild from a known origin
Square a scanned part to a clean coordinate frame, then model it in CAD from real datums.
Inspection & QA
Measure against nominal
Compare a scan against its CAD, then hand over a report with measurements, true-position hole tables and pass/fail verdicts. Pro
3D-print prep
Level before you slice
Orient and seat a scan on a flat base so it prints square, first time.
Heritage & artefacts
A documented frame
Give a digitised object a repeatable, recorded coordinate system for archiving.
Choose a licence
Two tiers. Both one-off.
Buy once, own it. The 7-day trial unlocks everything, including Pro
WARELAB Mesh
Align & export
$59.99 / one-off
Everything you need to square a scan and take it into CAD.

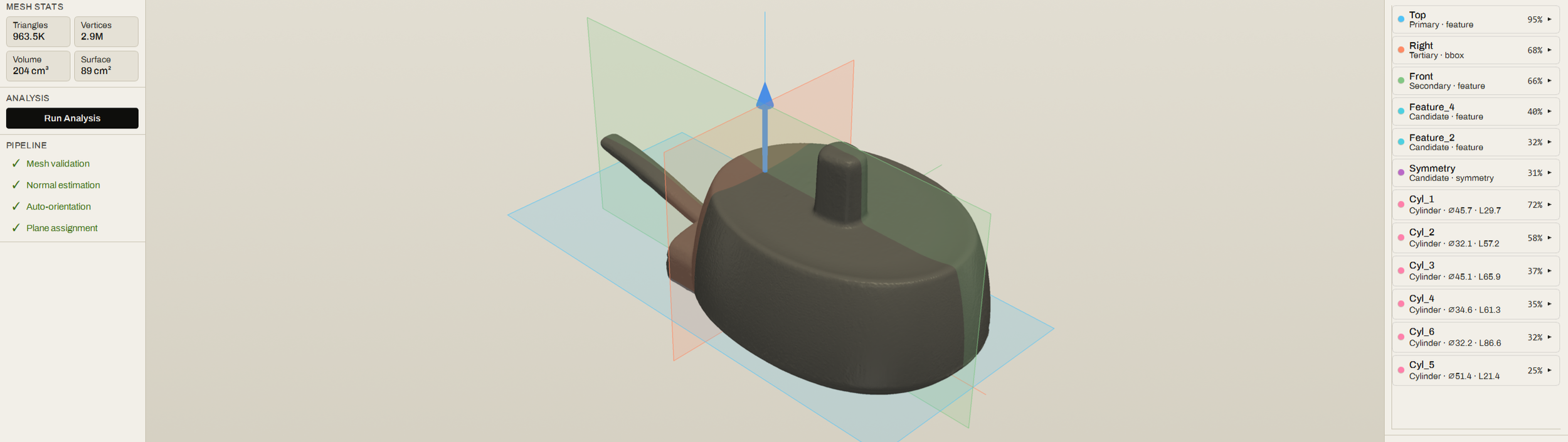

- Automatic datum detection — planes, cylinders, symmetry
- Full manual datum toolkit — click-a-face, 3-point plane, 3-point cylinder, mid-plane, mirror, auto base
- One-click square-up to a CAD origin
- Opens STL, OBJ, PLY, 3MF and point clouds — plus STEP / STP CAD
- Scan quality checks, true enclosed volume and mass from density
- Export aligned mesh + transform — STL / OBJ / PLY / 3MF
- Mesh simplify on export
or start the free 7-day trial
WARELAB Mesh Pro
RecommendedAlign, measure & inspect
$99.99 / one-off
Standard, plus the full Analysis & Inspection suite:
- Measure — distances, diameters, angles and overall extent, straight off the part
- CAD Compare — best-fit or datum-referenced, against STL or STEP nominals
- Flatness & cylindricity maps with true ISO 1101 zone widths
- Section views, with DXF export — true arcs a CAM package can machine
- Hole table — true position and bolt-circle PCD
- Form & orientation — flatness, cylindricity, parallelism / perpendicularity
- Inspection Report builder — your cover details and logo, out as PDF, .odt, .html or CSV
- All future upgrades to the Analysis suite
or start the free 7-day trial
What’s included
Capability, side by side
| Feature | Standard | Pro |
|---|---|---|
| Import & align | ||
| Automatic datum alignment | ✓ | ✓ |
| Manual datum toolkit | ✓ | ✓ |
| Opens meshes, point clouds and STEP / STP CAD | ✓ | ✓ |
| Mesh & export | ||
| Scan quality checks, true volume & mass | ✓ | ✓ |
| Export mesh + transform (STL / OBJ / PLY / 3MF) | ✓ | ✓ |
| Mesh simplify on export | ✓ | ✓ |
| Save & reopen projects | ✓ | ✓ |
| Measure & inspect | ||
| Measure — distance / diameter / angle / extent | — | ✓ |
| Flatness & cylindricity maps (ISO 1101 zones) | — | ✓ |
| CAD Compare — scan vs STL or STEP nominal | — | ✓ |
| Section views | — | ✓ |
| DXF section export — true arcs and profiles | — | ✓ |
| Hole table — true position & bolt-circle PCD | — | ✓ |
| Form & orientation — flatness, cylindricity, perpendicularity | — | ✓ |
| Inspection Report — PDF / .odt / .html / CSV | — | ✓ |
| Future Analysis-suite upgrades | — | ✓ |
| 7-day trial | everything | everything |
| Licence | one-off | one-off |
| Price | $59.99 | $99.99 |
Start on Standard, move up when you need it
Upgrade to Pro from inside the app any time — you only pay the difference between the two tiers. Your licence flips in place; there's no second key to manage.
Try it free
Every feature, unlocked for 7 days.
The trial is the full app — including the Pro Analysis suite. No licence key needed to start; buy one when it works for your parts.
